PageRank

二叉树上的我发布于 2023-09-26 收录于机器学习 Python

Links as votes

使用In-coming links作为投票，也就是别人引用了我，即一个节点被多少其他节点指向，那么这个节点被多少用户点击的概率就越大。

pagerank假设 In-Links 之间也是不一样，重要网站引用我和无名小将引用我肯定前者更重要。

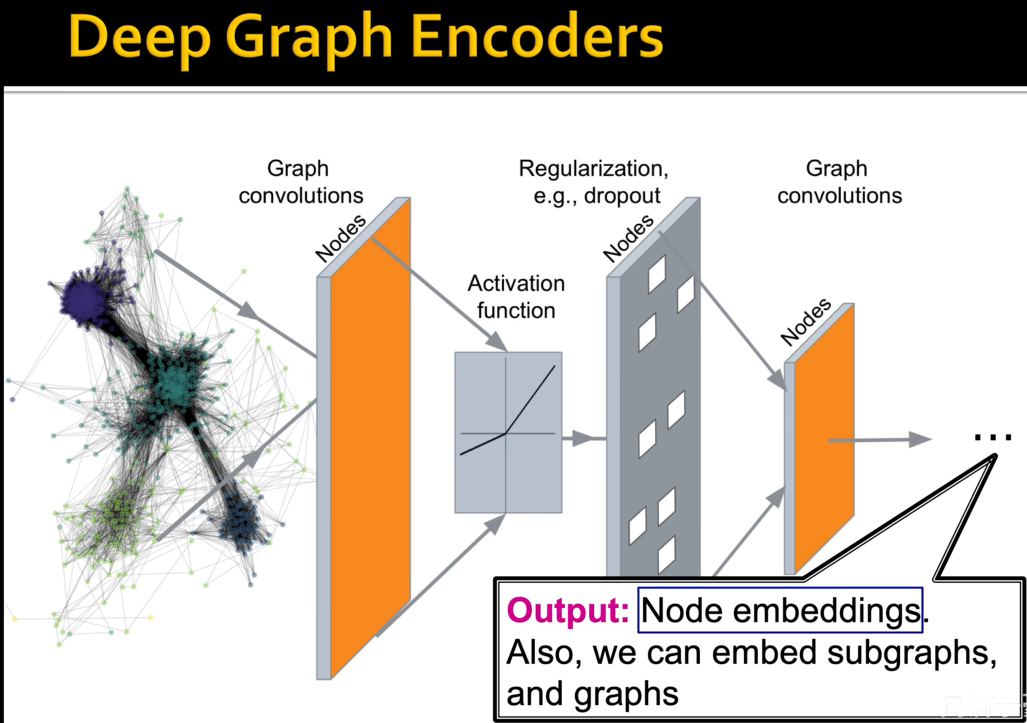

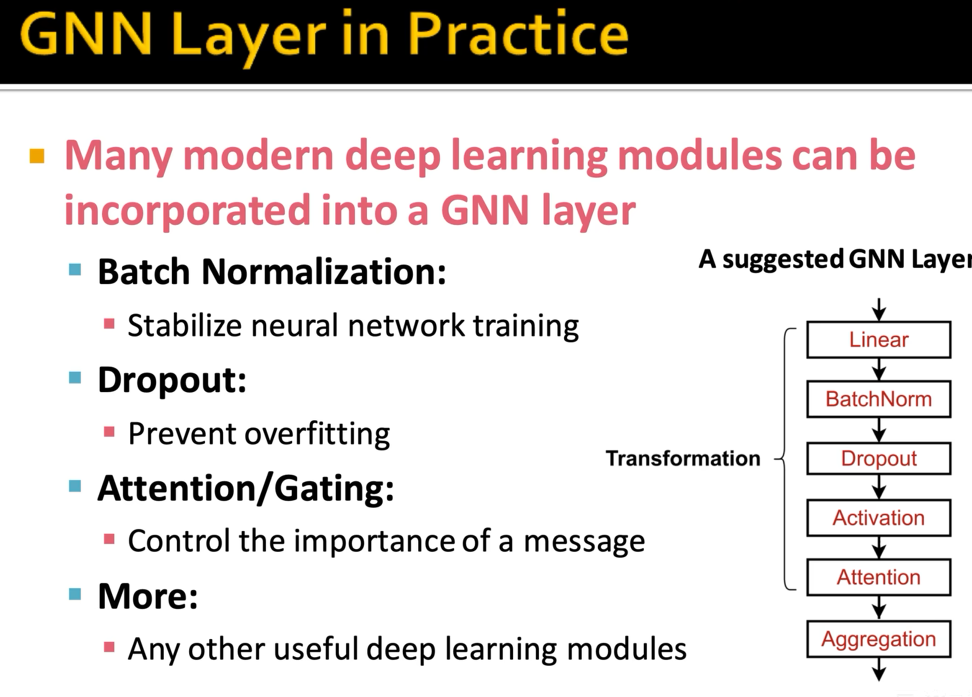

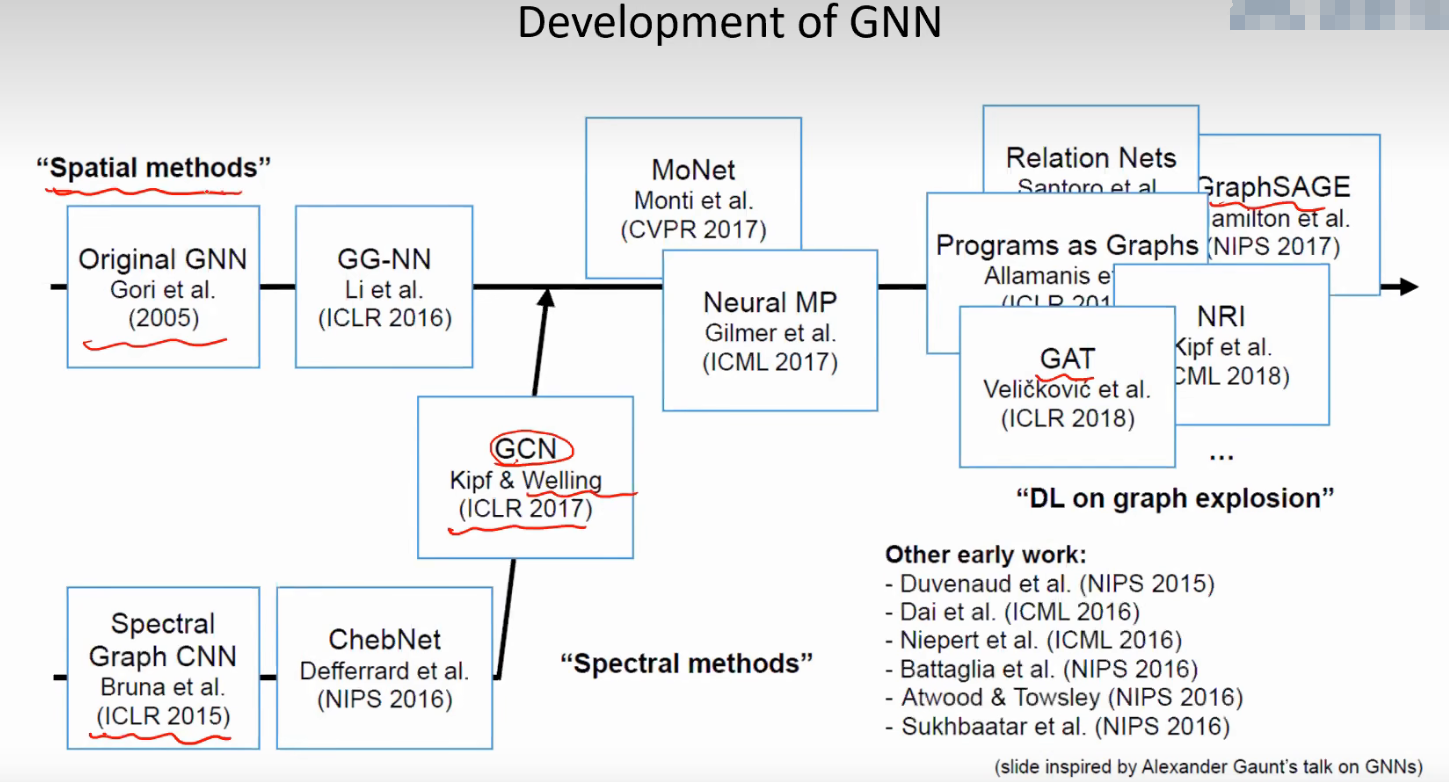

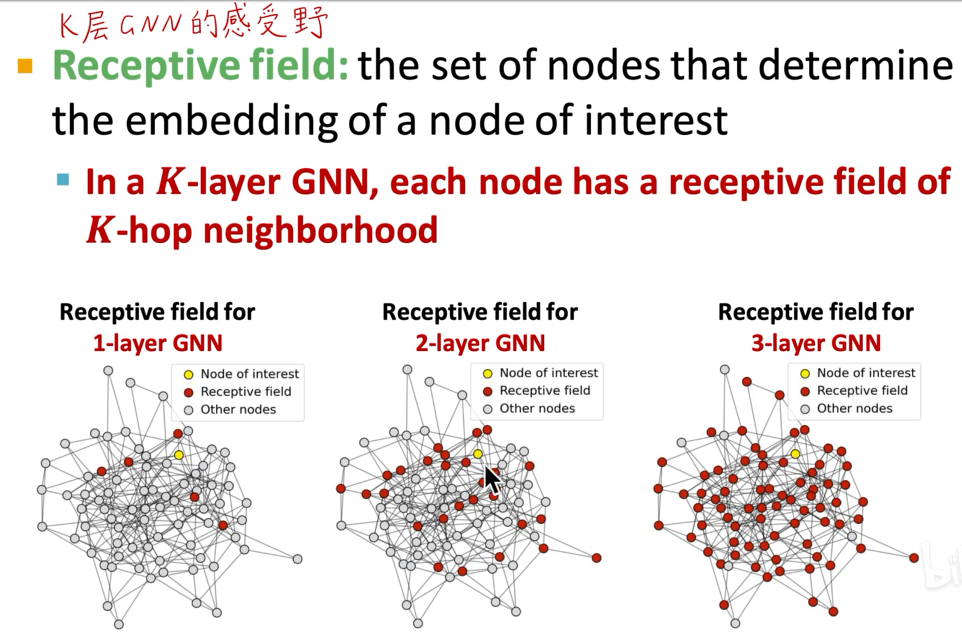

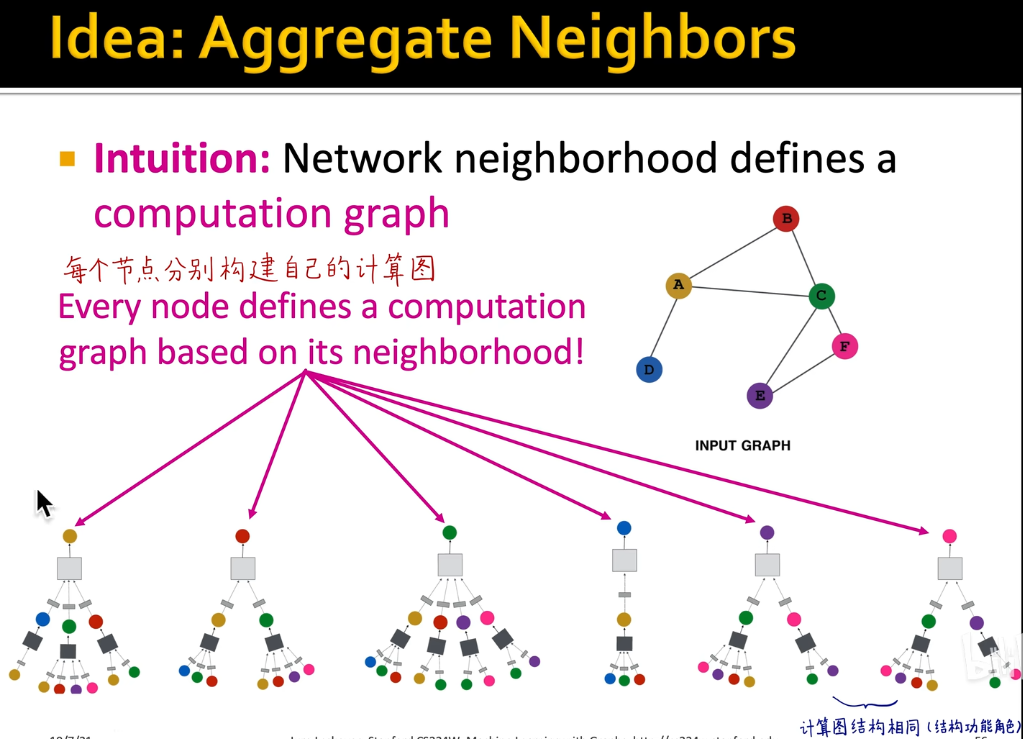

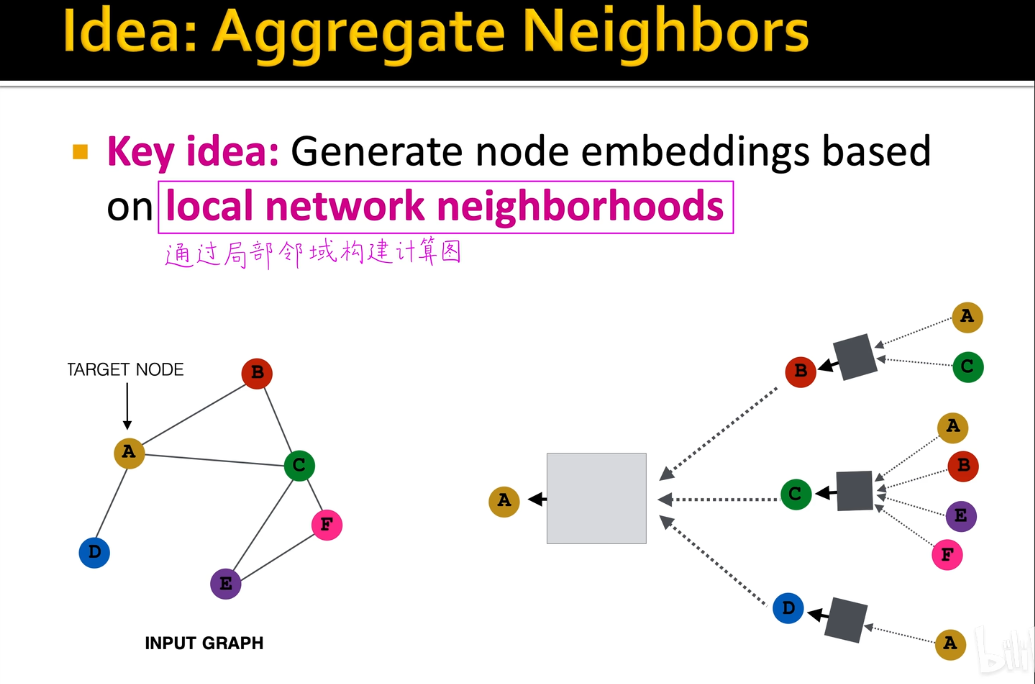

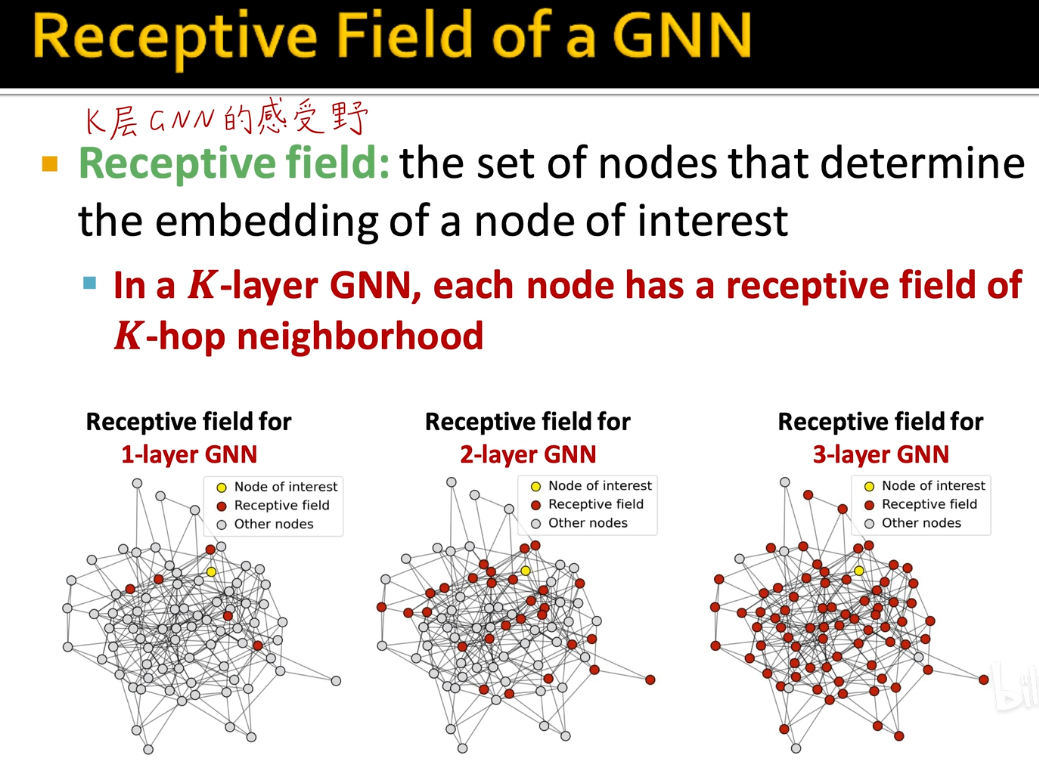

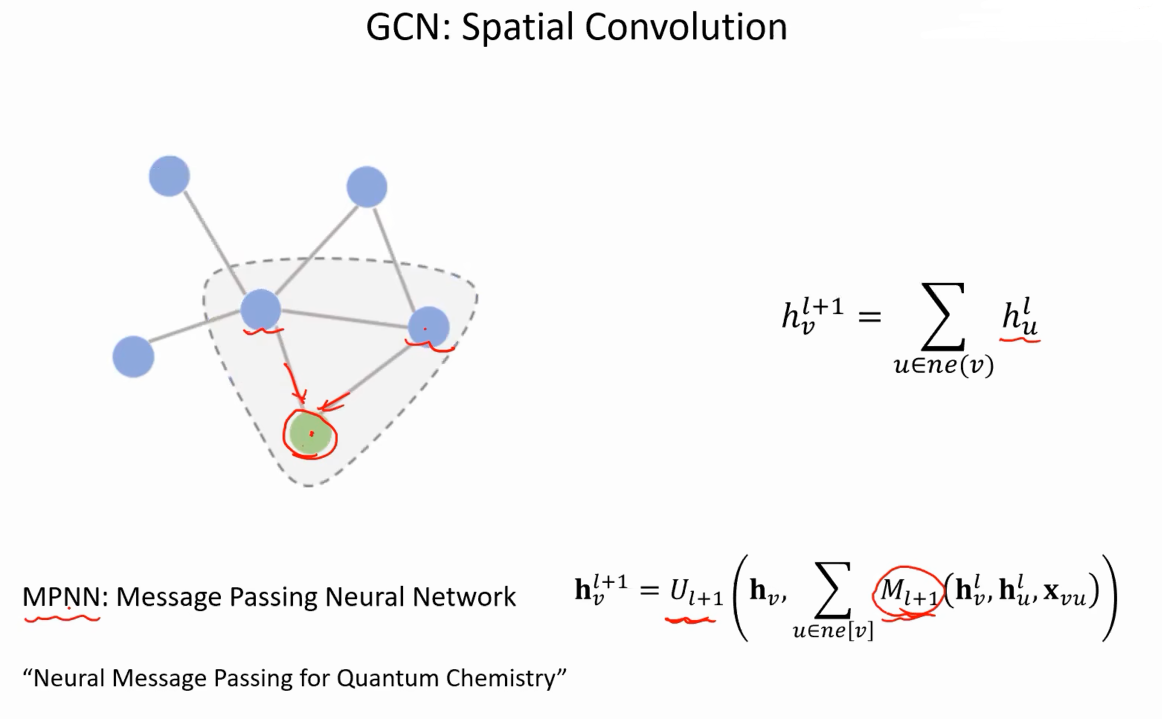

用图卷积和树搜索解决组合优化问题(含笔记)

二叉树上的我发布于 2023-09-25 收录于机器学习 Python

基于原文作的个人笔记，在此展出

建议按住ctrl然后滑动鼠标滑轮放大查看，笔记做的很小，图片分辨率很高，放大也不会糊

原文：Combinatorial Optimization with Graph Convolutional Networks and Guided Tree Search

原文链接：https://arxiv.org/abs/1810.10659

Node2Vec

二叉树上的我发布于 2023-09-24 收录于机器学习 Python

前言

DeepWalk 仅能反映相邻节点的社群相似信息，无法反映节点的功能角色相似的信息，因为DeespWalk仅使用连接信息(结构信息)学习。

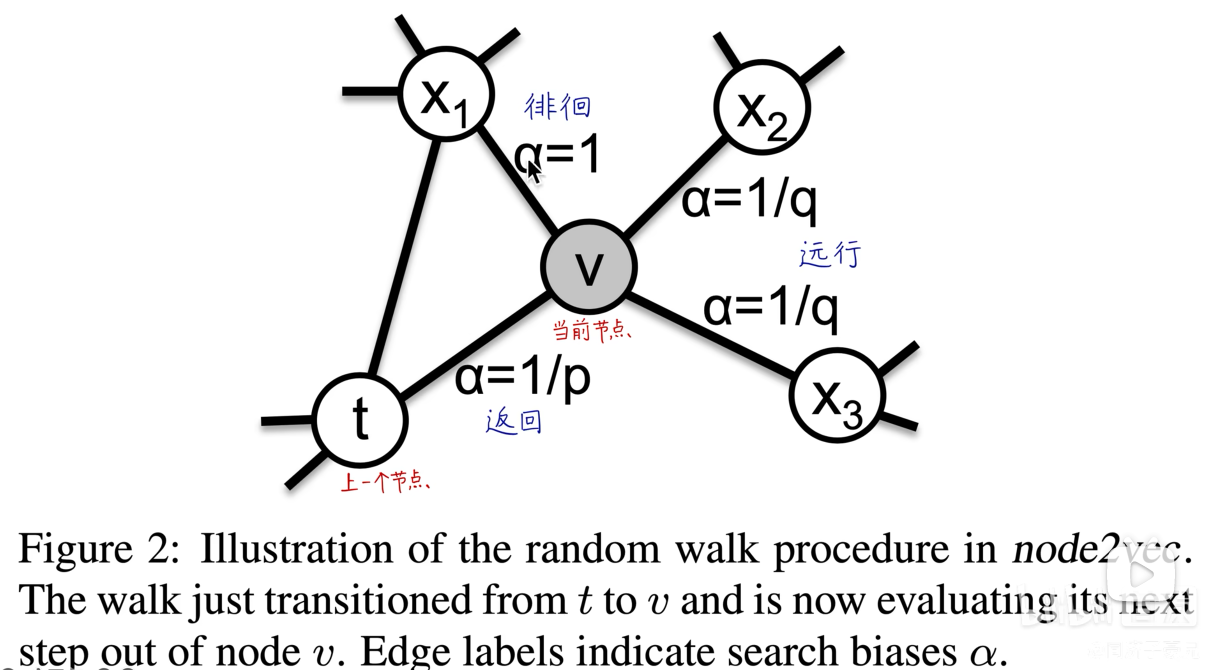

有偏随机游走

DeepWalk实战-维基百科词条图嵌入可视化

二叉树上的我发布于 2023-09-23 收录于机器学习 Python

参考资料

https://www.analyticsvidhya.com/blog/2019/11/graph-feature-extraction-deepwalk/

https://github.com/prateekjoshi565/DeepWalk

安装工具包

1

!pip install networkx gensim pandas numpy tqdm scikit-learn matplotlib

Collecting networkx
  Downloading networkx-3.1-py3-none-any.whl (2.1 MB)
[2K     [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m2.1/2.1 MB[0m [31m50.1 MB/s[0m eta [36m0:00:00[0ma [36m0:00:01[0m
[?25hCollecting gensim
  Obtaining dependency information for gensim from https://files.pythonhosted.org/packages/22/40/7d2cce3ad4ad5d02aa68e253e6ea5f0acc381f02f594e235fe00a274faff/gensim-4.3.2-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata
  Downloading gensim-4.3.2-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (8.3 kB)
Collecting pandas
  Obtaining dependency information for pandas from https://files.pythonhosted.org/packages/de/ce/b5d9c7ce1aaf9023b823c81932a50cd5e8f407198a696b0d1c6025a40b03/pandas-2.1.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata
  Downloading pandas-2.1.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (18 kB)
Collecting numpy
  Obtaining dependency information for numpy from https://files.pythonhosted.org/packages/c4/36/161e2f8110f8c49e59f6107bd6da4257d30aff9f06373d0471811f73dcc5/numpy-1.26.0-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata
  Downloading numpy-1.26.0-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (58 kB)
[2K     [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m58.5/58.5 kB[0m [31m4.8 MB/s[0m eta [36m0:00:00[0m
[?25hCollecting tqdm
  Obtaining dependency information for tqdm from https://files.pythonhosted.org/packages/00/e5/f12a80907d0884e6dff9c16d0c0114d81b8cd07dc3ae54c5e962cc83037e/tqdm-4.66.1-py3-none-any.whl.metadata
  Downloading tqdm-4.66.1-py3-none-any.whl.metadata (57 kB)
[2K     [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m57.6/57.6 kB[0m [31m19.5 MB/s[0m eta [36m0:00:00[0m
[?25hCollecting scikit-learn
  Obtaining dependency information for scikit-learn from https://files.pythonhosted.org/packages/8f/87/5969092159207f583481ad80a03f09e2d4af1ebd197f4530ca4e906c947e/scikit_learn-1.3.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata
  Downloading scikit_learn-1.3.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (11 kB)
Collecting matplotlib
  Obtaining dependency information for matplotlib from https://files.pythonhosted.org/packages/65/5b/3b8fd7d66043f0638a35fa650570cbe69efd42fe169e5024f9307598b47e/matplotlib-3.8.0-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata
  Downloading matplotlib-3.8.0-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (5.8 kB)
Collecting scipy>=1.7.0 (from gensim)
  Obtaining dependency information for scipy>=1.7.0 from https://files.pythonhosted.org/packages/ef/1b/7538792254aec6850657d5b940fd05fe60582af829ffe40d6c054f065f34/scipy-1.11.3-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata
  Downloading scipy-1.11.3-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (60 kB)
[2K     [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m60.4/60.4 kB[0m [31m23.3 MB/s[0m eta [36m0:00:00[0m
[?25hCollecting smart-open>=1.8.1 (from gensim)
  Obtaining dependency information for smart-open>=1.8.1 from https://files.pythonhosted.org/packages/fc/d9/d97f1db64b09278aba64e8c81b5d322d436132df5741c518f3823824fae0/smart_open-6.4.0-py3-none-any.whl.metadata
  Downloading smart_open-6.4.0-py3-none-any.whl.metadata (21 kB)
Requirement already satisfied: python-dateutil>=2.8.2 in /root/miniconda3/envs/jupyter-env/lib/python3.11/site-packages (from pandas) (2.8.2)
Requirement already satisfied: pytz>=2020.1 in /root/miniconda3/envs/jupyter-env/lib/python3.11/site-packages (from pandas) (2023.3.post1)
Collecting tzdata>=2022.1 (from pandas)
  Downloading tzdata-2023.3-py2.py3-none-any.whl (341 kB)
[2K     [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m341.8/341.8 kB[0m [31m66.1 MB/s[0m eta [36m0:00:00[0m
[?25hCollecting joblib>=1.1.1 (from scikit-learn)
  Obtaining dependency information for joblib>=1.1.1 from https://files.pythonhosted.org/packages/10/40/d551139c85db202f1f384ba8bcf96aca2f329440a844f924c8a0040b6d02/joblib-1.3.2-py3-none-any.whl.metadata
  Downloading joblib-1.3.2-py3-none-any.whl.metadata (5.4 kB)
Collecting threadpoolctl>=2.0.0 (from scikit-learn)
  Obtaining dependency information for threadpoolctl>=2.0.0 from https://files.pythonhosted.org/packages/81/12/fd4dea011af9d69e1cad05c75f3f7202cdcbeac9b712eea58ca779a72865/threadpoolctl-3.2.0-py3-none-any.whl.metadata
  Downloading threadpoolctl-3.2.0-py3-none-any.whl.metadata (10.0 kB)
Collecting contourpy>=1.0.1 (from matplotlib)
  Obtaining dependency information for contourpy>=1.0.1 from https://files.pythonhosted.org/packages/b7/f6/78f60fa0b6ae64971178e2542e8b3ad3ba5f4f379b918ab7b18038a3f897/contourpy-1.1.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata
  Downloading contourpy-1.1.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (5.9 kB)
Collecting cycler>=0.10 (from matplotlib)
  Obtaining dependency information for cycler>=0.10 from https://files.pythonhosted.org/packages/e7/05/c19819d5e3d95294a6f5947fb9b9629efb316b96de511b418c53d245aae6/cycler-0.12.1-py3-none-any.whl.metadata
  Downloading cycler-0.12.1-py3-none-any.whl.metadata (3.8 kB)
Collecting fonttools>=4.22.0 (from matplotlib)
  Obtaining dependency information for fonttools>=4.22.0 from https://files.pythonhosted.org/packages/72/2c/7634a6c16b29d0c31cf54051beefab796abdfe8f52abead6d09e5403696e/fonttools-4.43.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata
  Downloading fonttools-4.43.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (152 kB)
[2K     [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m152.4/152.4 kB[0m [31m68.2 MB/s[0m eta [36m0:00:00[0m
[?25hCollecting kiwisolver>=1.0.1 (from matplotlib)
  Obtaining dependency information for kiwisolver>=1.0.1 from https://files.pythonhosted.org/packages/17/ba/17a706b232308e65f57deeccae503c268292e6a091313f6ce833a23093ea/kiwisolver-1.4.5-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata
  Downloading kiwisolver-1.4.5-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (6.4 kB)
Requirement already satisfied: packaging>=20.0 in /root/miniconda3/envs/jupyter-env/lib/python3.11/site-packages (from matplotlib) (23.1)
Collecting pillow>=6.2.0 (from matplotlib)
  Obtaining dependency information for pillow>=6.2.0 from https://files.pythonhosted.org/packages/3c/49/f87cecbdec4b00cc1187f01196d48c08828204cd861915fab44972dc705c/Pillow-10.0.1-cp311-cp311-manylinux_2_28_x86_64.whl.metadata
  Downloading Pillow-10.0.1-cp311-cp311-manylinux_2_28_x86_64.whl.metadata (9.5 kB)
Collecting pyparsing>=2.3.1 (from matplotlib)
  Obtaining dependency information for pyparsing>=2.3.1 from https://files.pythonhosted.org/packages/39/92/8486ede85fcc088f1b3dba4ce92dd29d126fd96b0008ea213167940a2475/pyparsing-3.1.1-py3-none-any.whl.metadata
  Downloading pyparsing-3.1.1-py3-none-any.whl.metadata (5.1 kB)
Requirement already satisfied: six>=1.5 in /root/miniconda3/envs/jupyter-env/lib/python3.11/site-packages (from python-dateutil>=2.8.2->pandas) (1.16.0)
Downloading gensim-4.3.2-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (26.7 MB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m26.7/26.7 MB[0m [31m11.2 MB/s[0m eta [36m0:00:00[0m00:01[0m00:01[0m
[?25hDownloading pandas-2.1.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (12.2 MB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m12.2/12.2 MB[0m [31m227.0 MB/s[0m eta [36m0:00:00[0m00:01[0m
[?25hDownloading numpy-1.26.0-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (18.2 MB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m18.2/18.2 MB[0m [31m215.8 MB/s[0m eta [36m0:00:00[0ma [36m0:00:01[0m
[?25hDownloading tqdm-4.66.1-py3-none-any.whl (78 kB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m78.3/78.3 kB[0m [31m40.2 MB/s[0m eta [36m0:00:00[0m
[?25hDownloading scikit_learn-1.3.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (10.9 MB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m10.9/10.9 MB[0m [31m258.3 MB/s[0m eta [36m0:00:00[0m00:01[0m
[?25hDownloading matplotlib-3.8.0-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (11.6 MB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m11.6/11.6 MB[0m [31m261.5 MB/s[0m eta [36m0:00:00[0m00:01[0m
[?25hDownloading contourpy-1.1.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (302 kB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m302.8/302.8 kB[0m [31m121.8 MB/s[0m eta [36m0:00:00[0m
[?25hDownloading cycler-0.12.1-py3-none-any.whl (8.3 kB)
Downloading fonttools-4.43.1-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (4.8 MB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m4.8/4.8 MB[0m [31m268.2 MB/s[0m eta [36m0:00:00[0m
[?25hDownloading joblib-1.3.2-py3-none-any.whl (302 kB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m302.2/302.2 kB[0m [31m124.7 MB/s[0m eta [36m0:00:00[0m
[?25hDownloading kiwisolver-1.4.5-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (1.4 MB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m1.4/1.4 MB[0m [31m240.8 MB/s[0m eta [36m0:00:00[0m
[?25hDownloading Pillow-10.0.1-cp311-cp311-manylinux_2_28_x86_64.whl (3.6 MB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m3.6/3.6 MB[0m [31m271.2 MB/s[0m eta [36m0:00:00[0m
[?25hDownloading pyparsing-3.1.1-py3-none-any.whl (103 kB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m103.1/103.1 kB[0m [31m51.8 MB/s[0m eta [36m0:00:00[0m
[?25hDownloading scipy-1.11.3-cp311-cp311-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (36.4 MB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m36.4/36.4 MB[0m [31m64.6 MB/s[0m eta [36m0:00:00[0m:00:01[0m00:01[0m
[?25hDownloading smart_open-6.4.0-py3-none-any.whl (57 kB)
[2K   [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m57.0/57.0 kB[0m [31m17.1 MB/s[0m eta [36m0:00:00[0m
[?25hDownloading threadpoolctl-3.2.0-py3-none-any.whl (15 kB)
Installing collected packages: tzdata, tqdm, threadpoolctl, smart-open, pyparsing, pillow, numpy, networkx, kiwisolver, joblib, fonttools, cycler, scipy, pandas, contourpy, scikit-learn, matplotlib, gensim
Successfully installed contourpy-1.1.1 cycler-0.12.1 fonttools-4.43.1 gensim-4.3.2 joblib-1.3.2 kiwisolver-1.4.5 matplotlib-3.8.0 networkx-3.1 numpy-1.26.0 pandas-2.1.1 pillow-10.0.1 pyparsing-3.1.1 scikit-learn-1.3.1 scipy-1.11.3 smart-open-6.4.0 threadpoolctl-3.2.0 tqdm-4.66.1 tzdata-2023.3
[33mWARNING: Running pip as the 'root' user can result in broken permissions and conflicting behaviour with the system package manager. It is recommended to use a virtual environment instead: https://pip.pypa.io/warnings/venv[0m[33m
[0m

导入工具包

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


import networkx as nx # 图数据挖掘

# 数据分析
import pandas as pd
import numpy as np

import random # 随机数
from tqdm import tqdm # 进度条

# 数据可视化
import matplotlib.pyplot as plt
%matplotlib inline

plt.rcParams['font.sans-serif']=['SimHei']  # 用来正常显示中文标签
plt.rcParams['axes.unicode_minus']=False  # 用来正常显示负号

获取维基百科网页引用关联数据

1.打开网站https://densitydesign.github.io/strumentalia-seealsology

DeepWalk

二叉树上的我发布于 2023-09-22 收录于机器学习 Python

前言

深度学习思想用于图嵌入的开山之作 - DeepWalk

学习路径：

Random Walk 是一种遍历图的基本方法，而 Deep Walk 则是一种利用 Random Walk 生成的序列来学习节点嵌入的具体方法。

嵌入整张图

二叉树上的我发布于 2023-09-21 收录于机器学习 Python

如何嵌入

全图进行编码嵌入

引入虚拟节点

匿名随机游走

https://arxiv.org/pdf/1805.11921.pdf

只要是新节点就标记新的一号，认号不认原来的节点标识。

矩阵分解角度 - 图嵌入(节点嵌入)和随机游走

二叉树上的我发布于 2023-09-20 收录于机器学习 Python

前言

矩阵分解和随机游走在数学上意义是一样的。

矩阵分解计算

矩阵分解这里可能解析解不能直接求得，且可能不唯一，所以实际计算用的数值解。

Random Walk & Node2vec - 图表示学习起始

二叉树上的我发布于 2023-09-19 收录于机器学习 Python

前言

本文讲述映射成D维向量的基于随机游走方法。

学习路径：

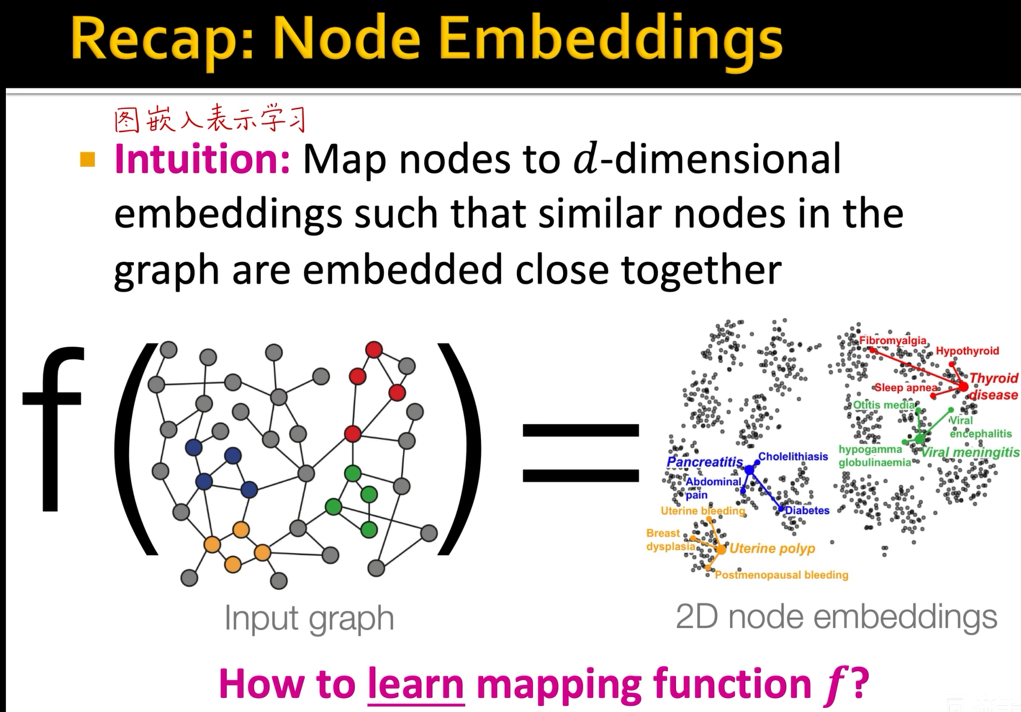

图嵌入 - Node Embedding

把节点映射为一个D维向量。

NetworkX实战

二叉树上的我发布于 2023-09-18 收录于机器学习 Python

北京上海地铁站图数据挖掘

上海、北京地铁站点图数据挖掘，计算地铁站点的最短路径、节点重要度、集群系数、连通性。

导入工具包

1
2
3
4
5


import networkx as nx
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.colors as mcolors
%matplotlib inline

可视化辅助函数

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


def draw(G, pos, measures, measure_name):

    plt.figure(figsize=(20, 20))
    nodes = nx.draw_networkx_nodes(G, pos, node_size=250, cmap=plt.cm.plasma,
                                   node_color=list(measures.values()),
                                   nodelist=measures.keys())
    nodes.set_norm(mcolors.SymLogNorm(linthresh=0.01, linscale=1, base=10))
    # labels = nx.draw_networkx_labels(G, pos)
    edges = nx.draw_networkx_edges(G, pos)

    plt.title(measure_name, fontsize=30)
    # plt.colorbar(nodes)
    plt.axis('off')
    plt.show()

字典按值排序辅助函数

1
2
3
4
5


def dict_sort_by_value(dict_input):
    '''
    输入字典，输出按值排序的字典
    '''
    return sorted(dict_input.items(),key=lambda x : x[1], reverse=True)

导入地铁站连接表

数据来源：

NetworkX实用模板案例

二叉树上的我发布于 2023-09-17 收录于机器学习 Python

PageRank节点重要度

在NetworkX中，计算有向图节点的PageRank节点重要度。

参考资料

networkx官方教程：https://networkx.org/documentation/stable/tutorial.html

nx.Graph https://networkx.org/documentation/stable/reference/classes/graph.html#networkx.Graph

给图、节点、连接添加属性：https://networkx.org/documentation/stable/tutorial.html#attributes

读写图：https://networkx.org/documentation/stable/reference/readwrite/index.html

导入工具包

1
2
3
4
5
6
7
8
9


# 图数据挖掘
import networkx as nx

# 数据可视化
import matplotlib.pyplot as plt
%matplotlib inline

plt.rcParams['font.sans-serif']=['SimHei']  # 用来正常显示中文标签
plt.rcParams['axes.unicode_minus']=False  # 用来正常显示负号

1

G = nx.star_graph(7)

1

nx.draw(G, with_labels = True)

计算PageRank节点重要度¶

1

pagerank = nx.pagerank(G, alpha=0.8)

1

pagerank

{0: 0.4583348922684132,
 1: 0.07738072967594098,
 2: 0.07738072967594098,
 3: 0.07738072967594098,
 4: 0.07738072967594098,
 5: 0.07738072967594098,
 6: 0.07738072967594098,
 7: 0.07738072967594098}

PageRank使用networkx实际只计算有向图的重要度，但传入无向图系统默认将其转换为双向图去计算了。
