前言
DeepWalk 仅能反映相邻节点的社群相似信息，无法反映节点的功能角色相似的信息，因为DeespWalk仅使用连接信息(结构信息)学习。
有偏随机游走

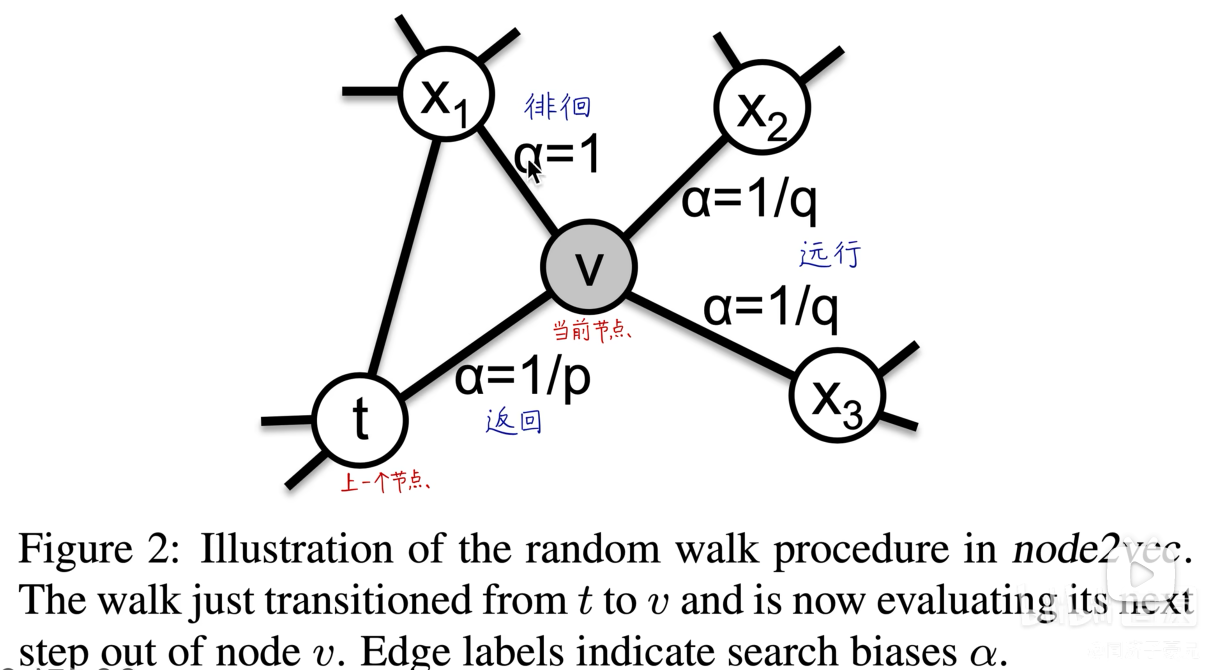

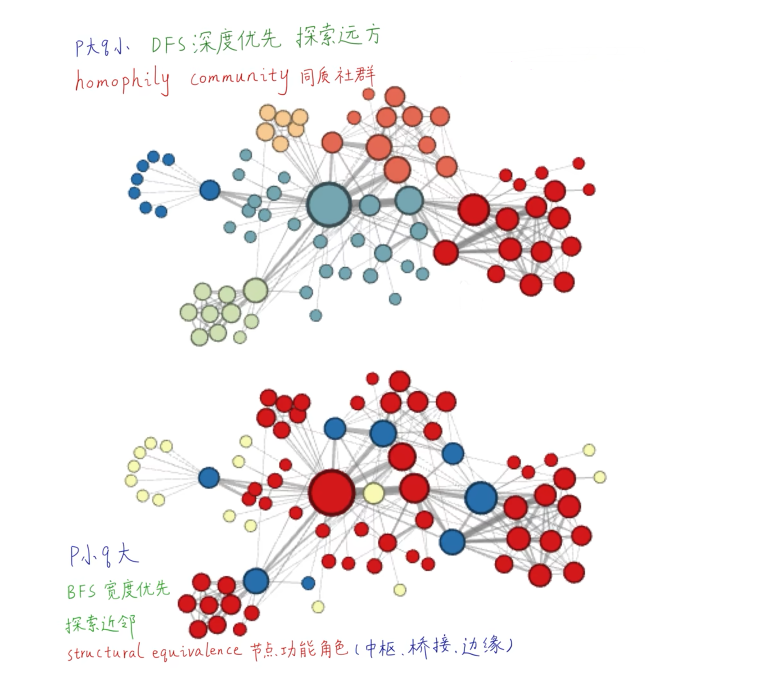

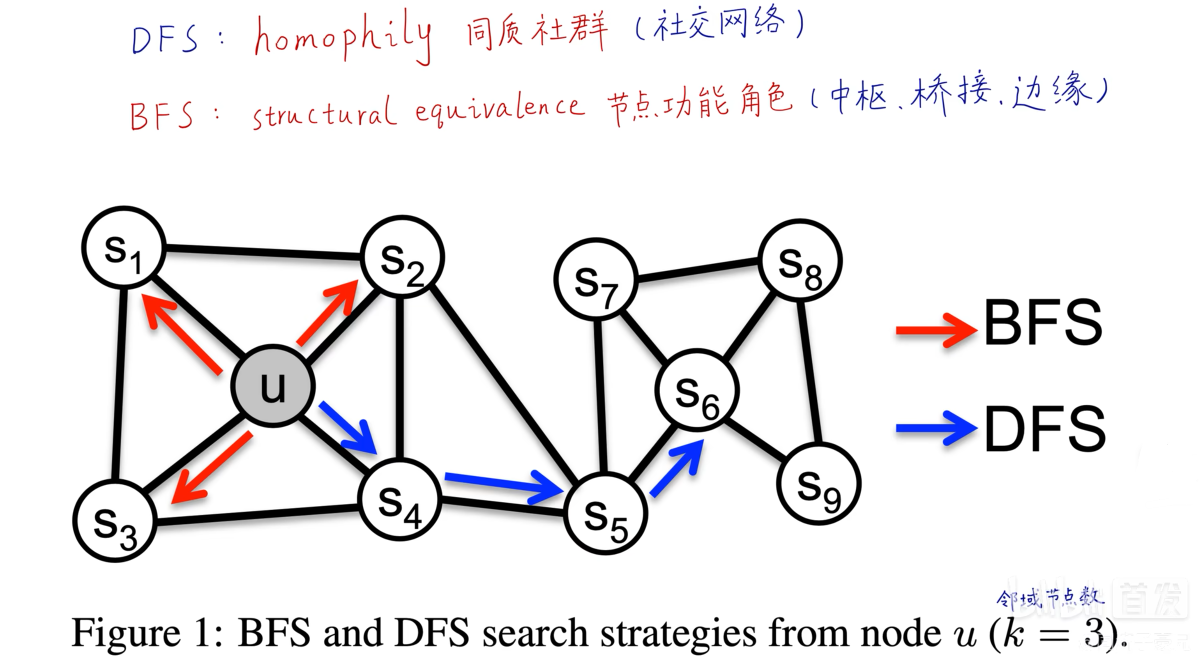

通过p和q的参数，可以控制随机游走时，游走方向和游走距离。区别在于更偏向DFS还是BFS。

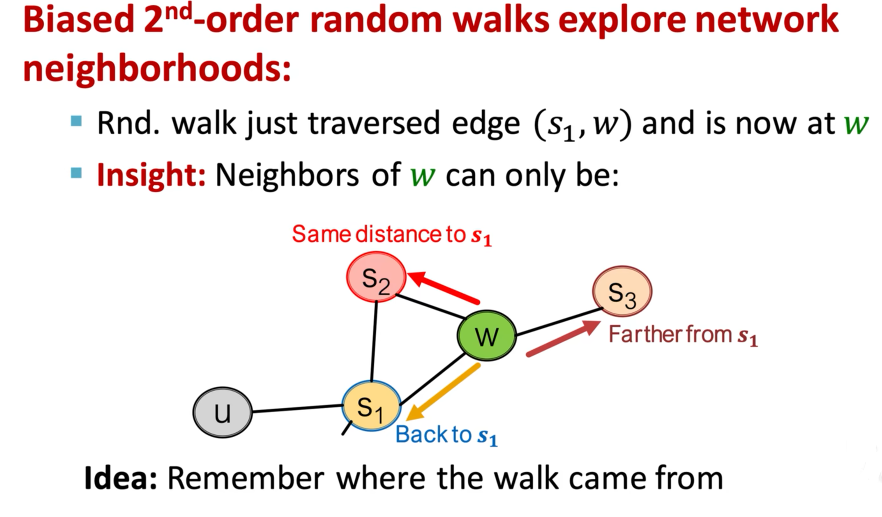

二阶随机游走，下一个节点不仅取决于当前节点，也取决于上一节点，区别于deepwalk的一阶随机游走仅取决于当前节点。
DeepWalk可看作p=1和q=1的特例。
后续神经网络需要输入的数据的特征内含丰富、有分类区分性且相互独立。
编码的方式：
- 手动设计构造特征
- 基于矩阵分解(PCA)
- 基于随机游走
- 基于图神经网络
条件独立 = 马尔可夫假设
alias sampling
用于产生下一个随机游走节点
时间复杂度O(1)，用空间(预处理)(O(n))换时间
大量反复抽样的情况下优势更突出
离散分布抽样转化为均匀分布抽样，生成连续随机数对离散世界采样。
具体代码实现
1
2
3
4
5
6
7
8
|
import warnings
warnings.filterwarnings('ignore')
import argparse
import numpy as np
import networkx as nx
#import node2vec
from gensim.models import Word2Vec
import random
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
def read_graph(input,weighted,directed):
'''
Reads the input network in networkx.
'''
# 权重图
if weighted:
G = nx.read_edgelist(input, nodetype=int, data=(('weight', float),), create_using=nx.DiGraph())
# 无权图
else:
G = nx.read_edgelist(input, nodetype=int, create_using=nx.DiGraph())
for edge in G.edges():
G[edge[0]][edge[1]]['weight'] = 1
# 无向操作
if not directed:
G = G.to_undirected()
return G
|
1
|
nx_G = read_graph('karate.edgelist',False,False)
|
34
1
2
3
|
import matplotlib.pyplot as plt
nx.draw(nx_G, with_labels=True)
plt.show()
|
实现alias-sampling
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
|
class Graph():
# 出事化设置参数
def __init__(self, nx_G, is_directed, p, q):
self.G = nx_G
self.is_directed = is_directed
self.p = p
self.q = q
def node2vec_walk(self, walk_length, start_node):
'''
Simulate a random walk starting from start node.
'''
G = self.G
# 上一步计算出的alias table，完成O(1)的采样
alias_nodes = self.alias_nodes
alias_edges = self.alias_edges
walk = [start_node]
# 直到生成长度为walk_length的节点序列位为止
while len(walk) < walk_length:
cur = walk[-1]
# 对邻居节点排序，目的是和alias table计算时的顺序对应起来
cur_nbrs = sorted(G.neighbors(cur))
if len(cur_nbrs) > 0:
# 节点序列只有一个节点的情况
if len(walk) == 1:
# 直接使用alias——node对应的结果
walk.append(cur_nbrs[alias_draw(alias_nodes[cur][0], alias_nodes[cur][1])])
# 节点序列大于一个节点的情况
else:
# 看前一个节点,prev是论文中的节点t
prev = walk[-2]
next = cur_nbrs[alias_draw(alias_edges[(prev, cur)][0],
alias_edges[(prev, cur)][1])]
walk.append(next)
else:
break
return walk
def simulate_walks(self, num_walks, walk_length):
'''
Repeatedly simulate random walks from each node.
'''
G = self.G
walks = []
nodes = list(G.nodes())
print ('Walk iteration:')
for walk_iter in range(num_walks):
print (str(walk_iter+1), '/', str(num_walks))
# 打乱节点顺序
random.shuffle(nodes)
for node in nodes:
# node2vec_walk是一次有偏的随机游走
walks.append(self.node2vec_walk(walk_length=walk_length, start_node=node))
return walks
def get_alias_edge(self, src, dst):
'''
Get the alias edge setup lists for a given edge.
'''
G = self.G
p = self.p
q = self.q
unnormalized_probs = []
# 论文3.2.2节核心算法
for dst_nbr in sorted(G.neighbors(dst)):
if dst_nbr == src:
unnormalized_probs.append(G[dst][dst_nbr]['weight']/p)
elif G.has_edge(dst_nbr, src):
unnormalized_probs.append(G[dst][dst_nbr]['weight'])
else:
unnormalized_probs.append(G[dst][dst_nbr]['weight']/q)
# 归一化
norm_const = sum(unnormalized_probs)
normalized_probs = [float(u_prob)/norm_const for u_prob in unnormalized_probs]
return alias_setup(normalized_probs)
def preprocess_transition_probs(self):
'''
Preprocessing of transition probabilities for guiding the random walks.
'''
G = self.G
is_directed = self.is_directed
alias_nodes = {}
# 节点概率alias sampling和归一化
for node in G.nodes():
unnormalized_probs = [G[node][nbr]['weight'] for nbr in sorted(G.neighbors(node))]
norm_const = sum(unnormalized_probs)
normalized_probs = [float(u_prob)/norm_const for u_prob in unnormalized_probs]
alias_nodes[node] = alias_setup(normalized_probs)
# 信息展示
if node == 2:
print (unnormalized_probs)
print (norm_const)
print (normalized_probs)
print (alias_nodes[node])
alias_edges = {}
triads = {}
# 边概率alias sampling和归一化
if is_directed:
for edge in G.edges():
alias_edges[edge] = self.get_alias_edge(edge[0], edge[1])
else:
for edge in G.edges():
alias_edges[edge] = self.get_alias_edge(edge[0], edge[1])
alias_edges[(edge[1], edge[0])] = self.get_alias_edge(edge[1], edge[0])
print ('edges alias')
print (alias_edges[(2, 3)])
self.alias_nodes = alias_nodes
self.alias_edges = alias_edges
return
|
1
2
3
4
|
p = 1
q= 1
directed = False
G = Graph(nx_G, directed, p, q)
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
|
def alias_setup(probs):
'''
Compute utility lists for non-uniform sampling from discrete distributions.
Refer to https://hips.seas.harvard.edu/blog/2013/03/03/the-alias-method-efficient-sampling-with-many-discrete-outcomes/
for details
'''
# 总过K个长度
K = len(probs)
# q个0
q = np.zeros(K)
J = np.zeros(K, dtype=np.int_)
smaller = []
larger = []
# 将各个概率分成两组，一组的概率值大于1，另一组的概率值小于1
for kk, prob in enumerate(probs):
q[kk] = K*prob
if q[kk] < 1.0:
smaller.append(kk)
else:
larger.append(kk)
# 使用贪心算法，将概率值小于1的不断填满
# pseudo code step 3
while len(smaller) > 0 and len(larger) > 0:
small = smaller.pop()
large = larger.pop()
J[small] = large
# 更新概率值
q[large] = q[large] + q[small] - 1.0
if q[large] < 1.0:
smaller.append(large)
else:
larger.append(large)
return J, q
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
def alias_draw(J, q):
'''
Draw sample from a non-uniform discrete distribution using alias sampling.
'''
K = len(J)
kk = int(np.floor(np.random.rand()*K))
# 取自己
if np.random.rand() < q[kk]:
return kk
# 取alias table存的节点
else:
return J[kk]
|
1
|
G.preprocess_transition_probs()
|
[1, 1, 1, 1, 1, 1, 1, 1, 1]
9
[0.1111111111111111, 0.1111111111111111, 0.1111111111111111, 0.1111111111111111, 0.1111111111111111, 0.1111111111111111, 0.1111111111111111, 0.1111111111111111, 0.1111111111111111]
(array([0, 0, 0, 0, 0, 0, 0, 0, 0]), array([1., 1., 1., 1., 1., 1., 1., 1., 1.]))
edges alias
(array([0, 0, 0, 0, 0, 0, 0, 0, 0, 0]), array([1., 1., 1., 1., 1., 1., 1., 1., 1., 1.]))
1
2
3
4
5
6
|
num_walks = 10
walk_length = 20
# 有偏的随机游走生成节点序列
walks = G.simulate_walks(num_walks, walk_length)
# 展示一个节点序列的长度
print (len(walks[0]))
|
Walk iteration:
1 / 10
2 / 10
3 / 10
4 / 10
5 / 10
6 / 10
7 / 10
8 / 10
9 / 10
10 / 10
20
训练embedding
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
def learn_embeddings(walks,dimensions,window_size,workers,iter):
'''
Learn embeddings by optimizing the Skipgram objective using SGD.
'''
# 将node的类型int转化为string
# walks = [map(str, walk) for walk in walks]
walk_lol = []
for walk in walks:
tmp = []
for node in walk:
tmp.append(str(node))
walk_lol.append(tmp)
# 调用gensim包运行word2vec
model = Word2Vec(walk_lol, vector_size=dimensions, window=window_size, min_count=0, sg=1, workers=workers,
epochs=iter)
# model.save_word2vec_format(args.output)
# 保存embedding信息
# model.wv.save_word2vec_format(args.output)
return model
|
1
2
|
model = learn_embeddings(walks,16,3,-1,10)
print ('finished')
|
finished
1
2
3
|
import matplotlib.pyplot as plt
nx.draw(nx_G, with_labels=True)
plt.show()
|
1
2
|
# # 找到和节点最相似的一组点
print (model.wv.most_similar('34'))
|
[('31', 0.49450308084487915), ('2', 0.48848462104797363), ('21', 0.4063515067100525), ('27', 0.3625999391078949), ('29', 0.3572307527065277), ('26', 0.32403403520584106), ('4', 0.3191637098789215), ('16', 0.31352993845939636), ('17', 0.2968163788318634), ('13', 0.18988074362277985)]
gensim.models.word2vec.Word2Vec
<gensim.models.word2vec.Word2Vec at 0x7f33c7208450>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
|
from scipy import spatial
# 余弦相似度
def cos_similarity(v1, v2):
return 1 - spatial.distance.cosine(v1, v2)
# 相似节点组1
print(cos_similarity(model.wv['17'], model.wv['6']))
print(cos_similarity(model.wv['7'], model.wv['6']))
print(cos_similarity(model.wv['7'], model.wv['5']))
# # 相似节点组2
# print (cos_similarity(model.wv['34'], model.wv['33']))
# print (cos_similarity(model.wv['34'], model.wv['9']))
# print (cos_similarity(model.wv['34'], model.wv['31']))
# # 不相似节点组
# print (cos_similarity(model.wv['17'], model.wv['25']))
# print (cos_similarity(model.wv['7'], model.wv['25']))
|
-0.19091002643108368
0.38975000381469727
-0.3603137731552124
1
2
3
4
5
6
7
8
9
10
11
12
13
|
# k-means聚类
from sklearn import cluster
from sklearn.metrics import adjusted_rand_score
from sklearn.model_selection import train_test_split
import pandas as pd
embedding_node=[]
for i in range(1,35):
j=str(i)
embedding_node.append(model.wv[j])
embedding_node=np.array(embedding_node).reshape((34,-1))
y_pred = cluster.KMeans(n_clusters=3, random_state=9).fit_predict(embedding_node) # 调用 test_RandomForestClassifier
y_pred
|
array([0, 2, 0, 1, 1, 1, 2, 0, 0, 0, 0, 2, 1, 0, 1, 1, 2, 1, 1, 0, 1, 1,
1, 0, 1, 2, 1, 1, 0, 0, 1, 1, 1, 1], dtype=int32)
1
2
3
4
|
import matplotlib.pyplot as plt
nx.draw(nx_G, with_labels=True)
plt.show()
|
